| Form Factor | 4U 19" standard rack-mount(Non Hot-swap) |
| Mainboard | EEB (12"x13")/CEB (12"x10.5")/ATX (12"x9.6")/MicroATX (9.6"x9.6") |
| Dimensions | Height: 6.9" (176mm) |
| Width: 19" (482mm) | |
| Depth: 25.6" (650mm) | |
| Gross Weight: 18 kg | |
| Packing(W x H x L): 570*260*845mm | |
| Drive Bay | 15*3.5" Non Hot-swap SAS/SATA/ HDD/SSD |
| Additional Drive Bays | N/A |
| Expansion Slots | 7 * Full height and length expansion slots |
| Backplane | N/A |
| Optional Backplane | N/A |
| PSU Form Factor | 2U standard PSU/1+1 redundant PSU/ATX |
| Cooling System | Front: 4 x 8025(Φ80mm, Thickness: 25mm) fans |
| Middle: 3 x 12038(Φ120mm, Thickness: 38mm)fans | |
| Rear: 2 x 8025(Φ80mm, Thickness: 25mm) fans | |
| Optional Cooling System | N/A |

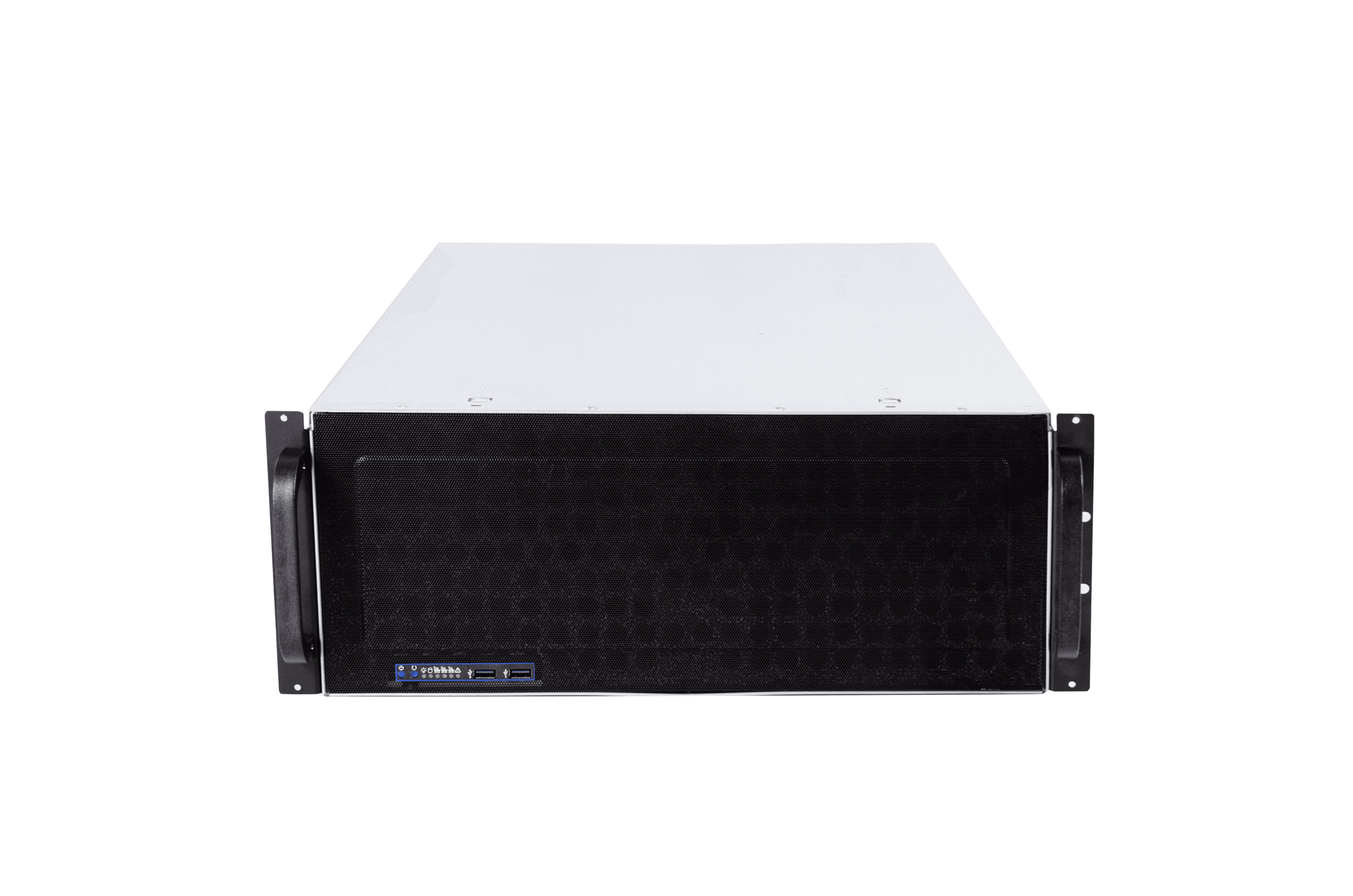

| Front Panel | Left: Dual USB 3.0 interface |
| Right: Botton: power on/off, Restart | |
| Right: Led: power status/ HDD activity/ 3 network Activity/ HDD Warming/ Over Heat Warming | |
| Material | 1.2mm SGCC |
